Project Description
Description

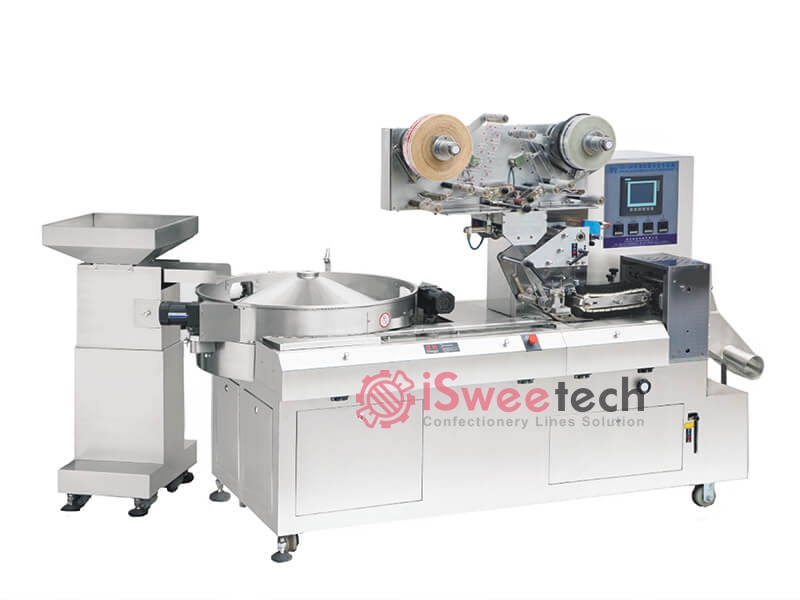

This machine is suitable for simple-grain hot pillow type packing of the candy. It adopts frequency conversion activator to adjust the speed, and equipped with a photocell to track the color mark, low noise, and high speed.
Feature
- Automatic shows error, safety shield, safety switch
- Touch screen design, Easy operation
- Less empty bags, steady packing capacity
- Easy to change spares, the whole structure designed for long-time using;
- Low noise

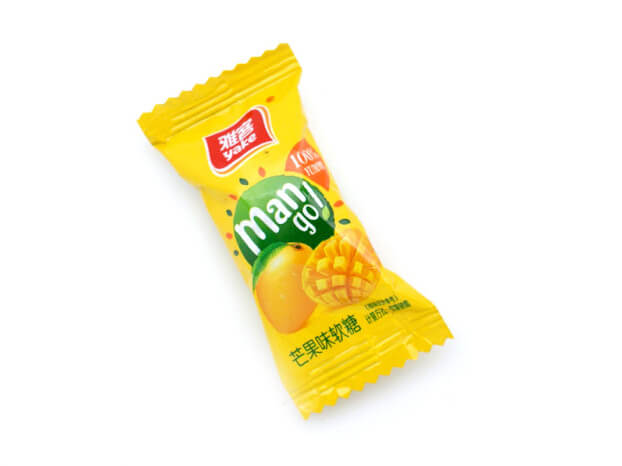

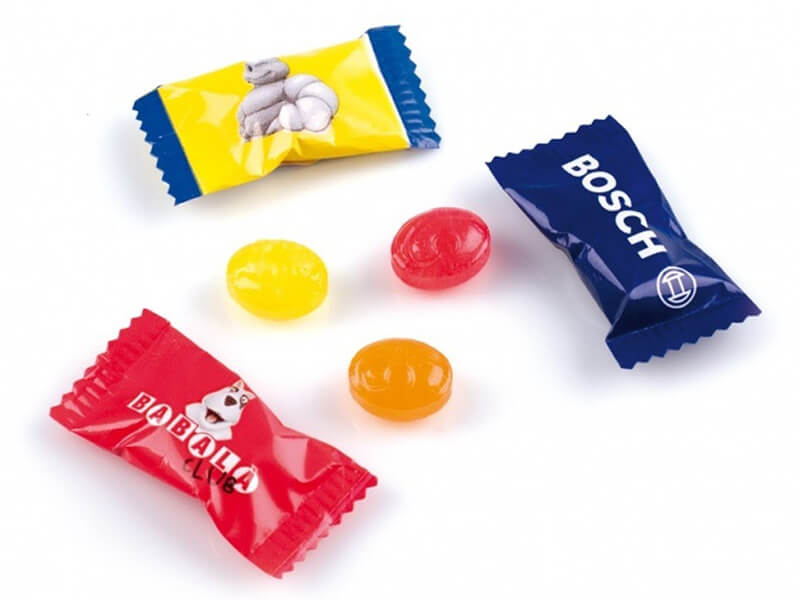

Packaging Type
Technical Parameters
| Model | TB800 | DXD1200 |
| Production Capacity | ≤800 Grain/min | ≤1200 pcs/min |
| Candy shape | Rectangle.squate.round.ellipse.column and special | |
| Overall Dimesions | 2700x1350x1450mm | 2800x1350x1720mm |
| Power Supply | 220v 50hz | 220v 50hz |
| Total power | 3.5KW | 3.5KW |
| Packing Material | Hot-sealing materials such as OPP, CPP, PET metallized film, Al-plastic film, Paper-rubber complex |
|
| Machine weight | 980kg | 1400kg |
