Project Description

Description

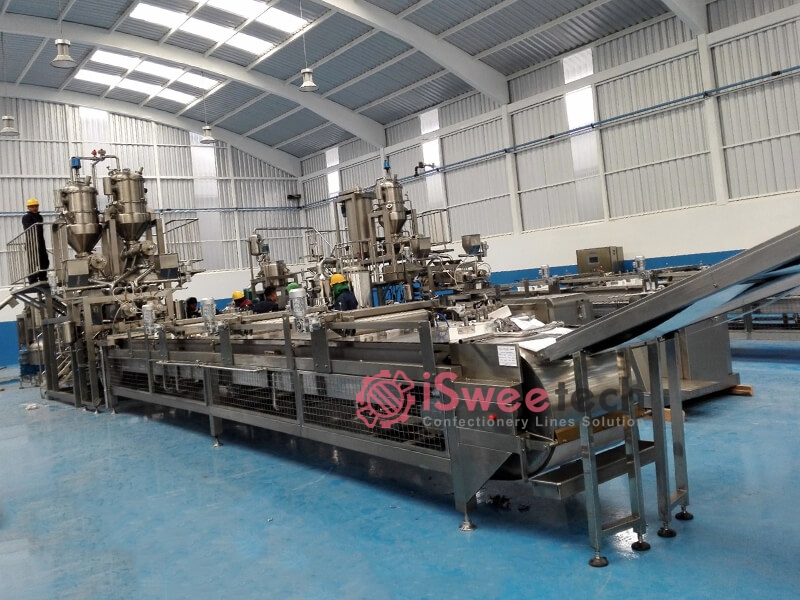

The production line is a fully automatic complete plant for making different kinds of die-formed hard candies.

Main Technical Parameters

Model TG500 TG1000
Production capacity 500kg/h 1000kg/h
Weight of Candy Max 6g Max 6g
Steam consumption kg/h 500kg/h 750kg/h
Steam pressure 0.8-1.0Mpa(8-10bar) 0.8-1.0Mpa(8-10bar)
Electric power needed 50KW 75KW
Conditions:
1.Room temperature 20~25℃ 20~25℃
2.Humidity (%) 55% 55%
Length of plant Approx 25m Approx 30m

Hard Candy Samples

Main Technical Parameters

The Machinery to Produce Hard Candy

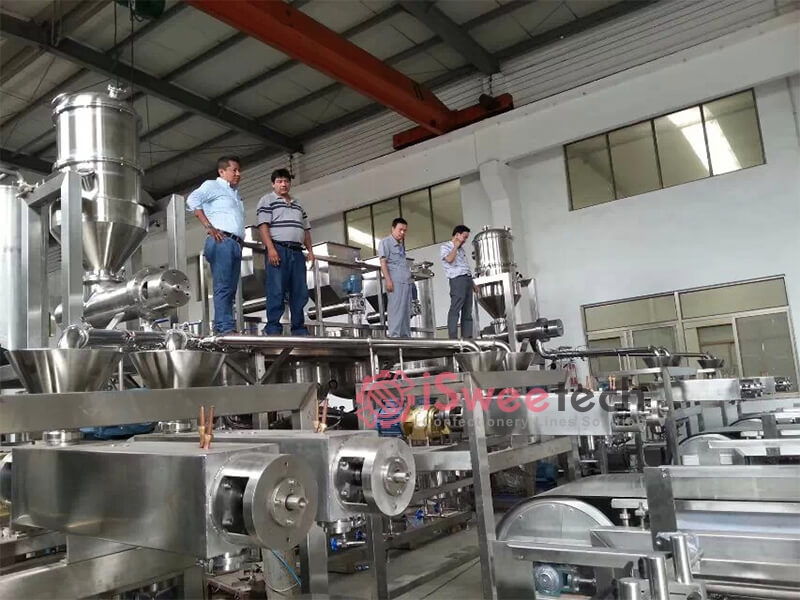

Auto-weighing system (COOLMIX)

Auto-weighing System (COOLMIX)

Auto-weighing system-AWS COOLMIX offers automatic weighing , mixing and feeding of raw materials with inline transportation to one or more cooking units, without heating or pre-dissolving.

Read More
Liquid Glucose Storage iSweetech

Liquid Glucose Storage

Liquid glucose storage vessel and feeding pump
Food standard Sus304 made
Hot water warm –keeping
Volume:1000L
Double jacket

Read More
Rapid Dissolving System(RDS)

Rapid Dissolving System

RDS means rapid dissolving system. The whole pre-cooking process is very short, the syrup will be no burnt-out under a relative low temperatur. The syrup is clear and transparent. That is the core of making final good quality products. It is an energy saving dissolving.

Read More

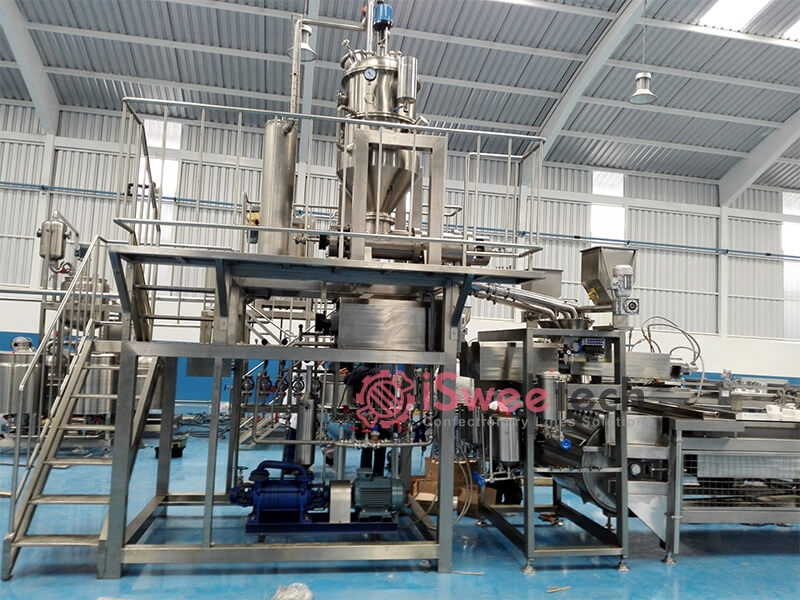

FCC Pipe cooking with flash vacuum chamber

Pipe Cooking With Flash Vacuum Chamber(FCC)

The plant is comprises of cooker, flash-off chamber, feeding pump, discharge pup, vacuum system, and automatic steam control system. All the cooking parameters are controlled via a PLC controller. The mass are transported via the loading and unloading pumps controlled by frequency inverters.Installation for carefully controlled and continuous production of high boiled sugar masses based on a two-phase working cycle…

Read More

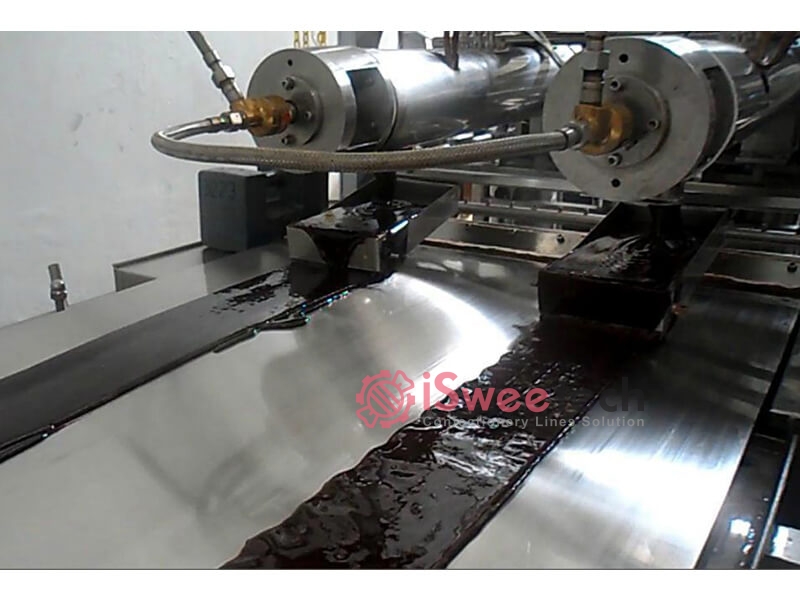

FCA Dosing and Mixing Unit

Dosing and Mixing Unit

Accurate metering system with pluger type pump driven by a common variable speed unital for the injection of the liquid additives(flavor, color and acid), the additives are thoroughtly mixed into the cooked mass by jacket stainless inline mixer; in FCA system, it ensures that the end product will always be of a consistent and high quality. Compact design, and fully qutomatic operation.

Read More

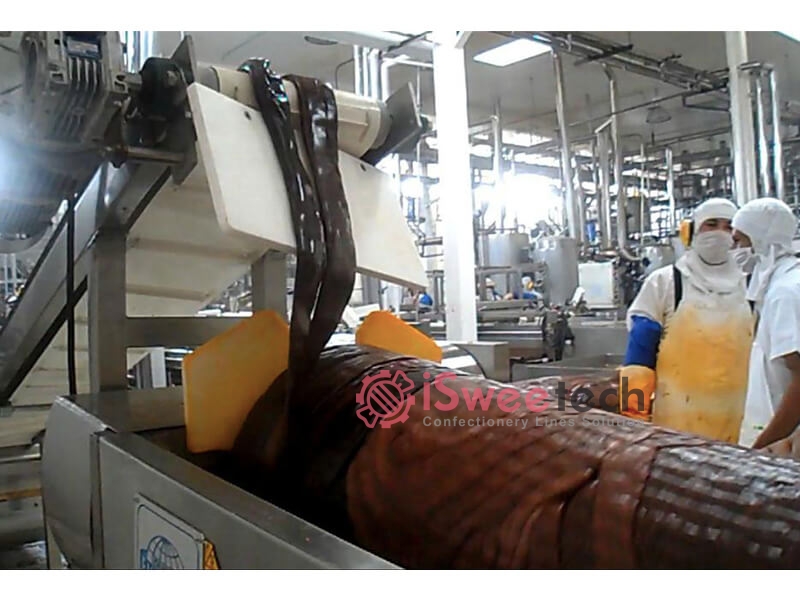

Batch Roller

Batch Roller

  • Heater Power: 1.2KW
  • Motor: 0.75KW
  • Dimension: 3400×700×1400mm
  • Weight: 500KGS
Read More

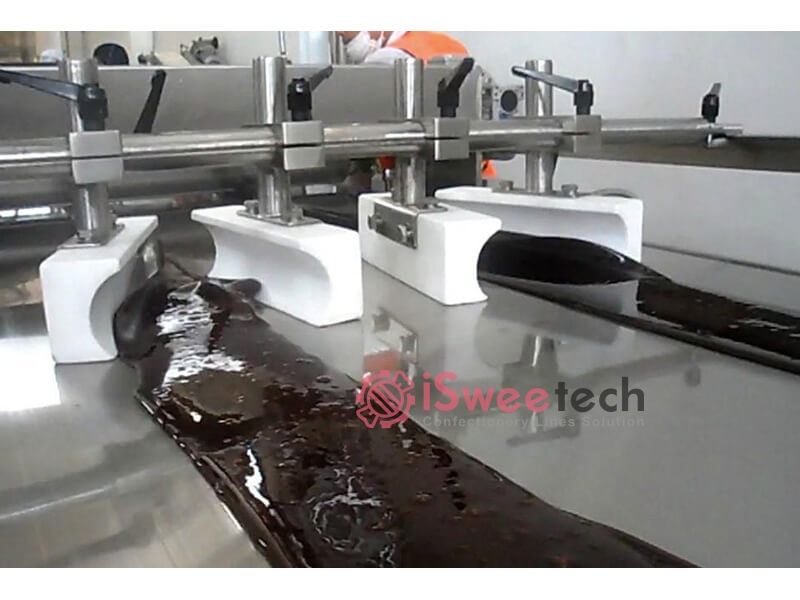

Rope Sizer

Rope Sizer

  • Motor: 0.75KW
  • Dimension: 1010×645×1200mm
  • Weight: 320KGS
Read More
TG Hard Candy Uniplast Die Forming Machine

Uniplast Die Forming Machine

  • High stability and easy for the operation;
  • Moulds are made of high quality steel, long-shelf life, high precision;
  • Uniplast dies change can be completed within several minutes
Read More
TG- Hard Candy Die Mould

Lollipop Die Mould

  • Made of high quality steel, long-shelf life;
  • High precision
Read More
TG PLC Control System

TG PLC Control System

Full PLC control and touch screen provide full process operation. Recipe management and alarm handling; Accurate control of the product dimensions and weight

Read More

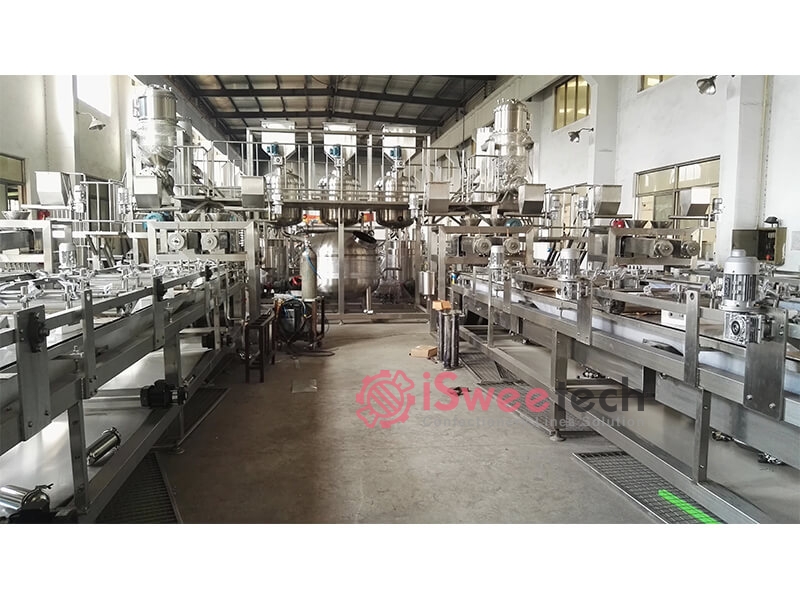

Cooling Tunnel With Refrigerator

Cooling Tunnel With Refrigerator

  • Cooling Layers: 3-7layers
  • Transporting belt speed: Max.5.5m/min
  • Speed of sieve plate swing: 76times/min
  • Power of convey motor: 0.5kw
  • Power of main motor: 1.5kw
  • Power of Compressor: 7.5kw
Read More
