deposited-lollipop-production-line-gdl

Description

The processing line is a compact unit which can continuously produce various kinds of lollipops under a strict sanitary condition. It is also an ideal equipment which can produce out good quality products with the saving of both the manpower and the space occupied.

FEATURES

  • PLC /computer process control available;
  • An LED touch panel for easy operating;
  • The production capacity is 120,240,480kgs/h(based on 4.0g mono candy ) or more;
  • The contacting food parts are made of hygienic Stainless Steel SUS304
  • Optional (mass) flowing controlled by Frequency inverters ;
  • In-line injection, dosing and pre-mixing techniques for the proportional addition of liquid;
  • Dosing pumps for the automatic injection of colors, flavors and acids;
  • One set of extra jam paste injection system for making fruit jam-center filled candies(optional);
  • Use automatic steam control system instead of the manual steam valve which control a stable steam pressure supplying to the cooking.
  • Moulds can be made according to the candies samples provided by the customer.

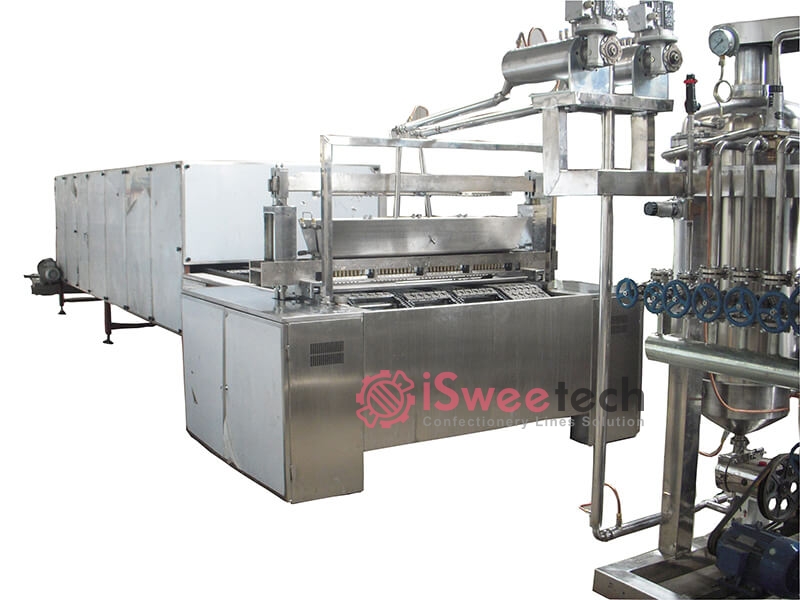

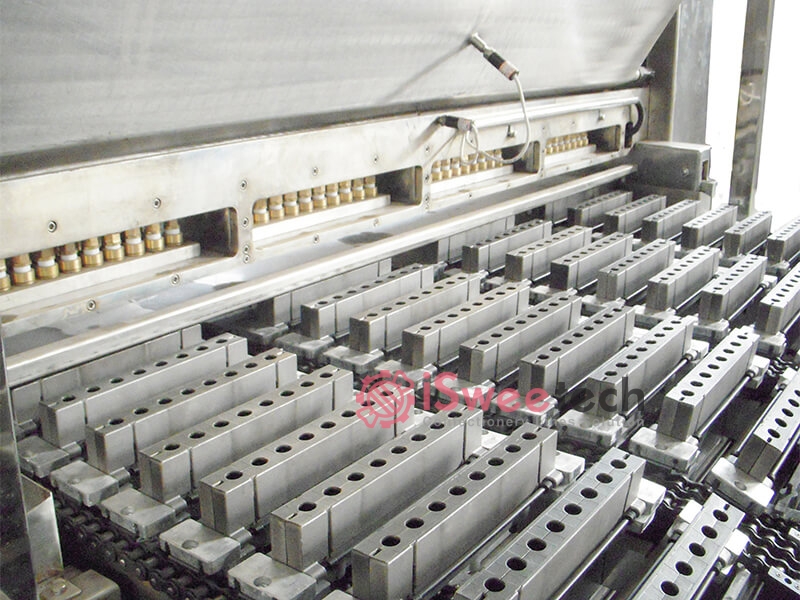

Production Line Details

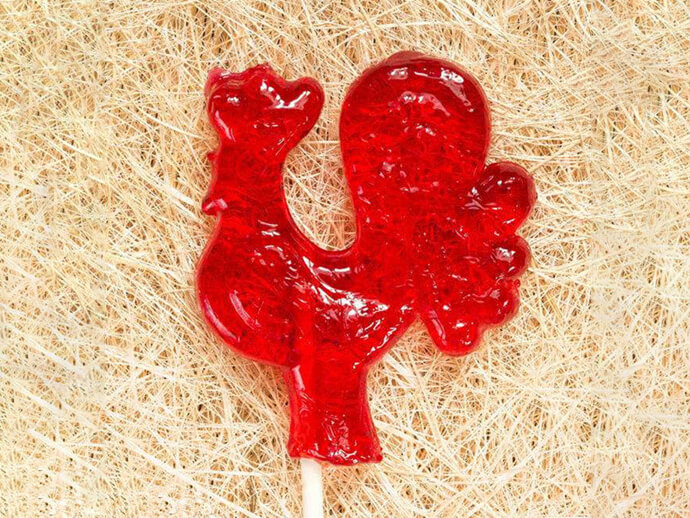

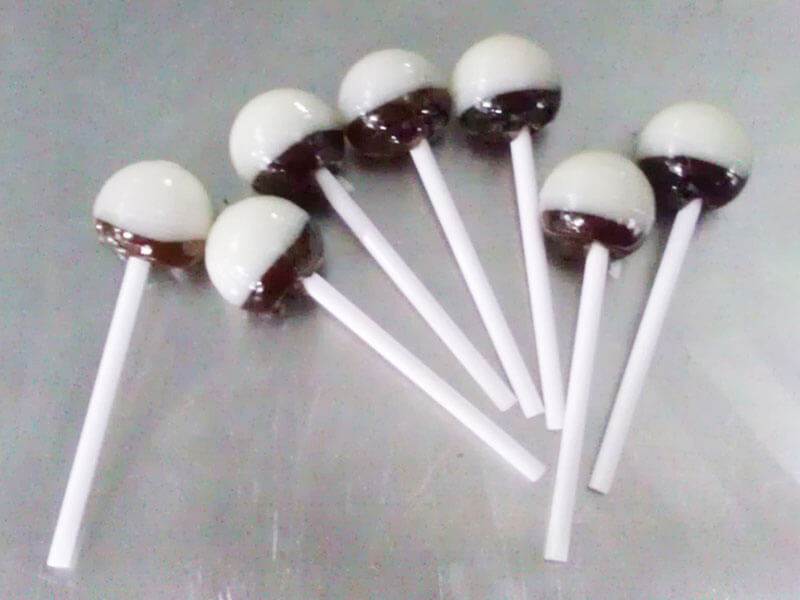

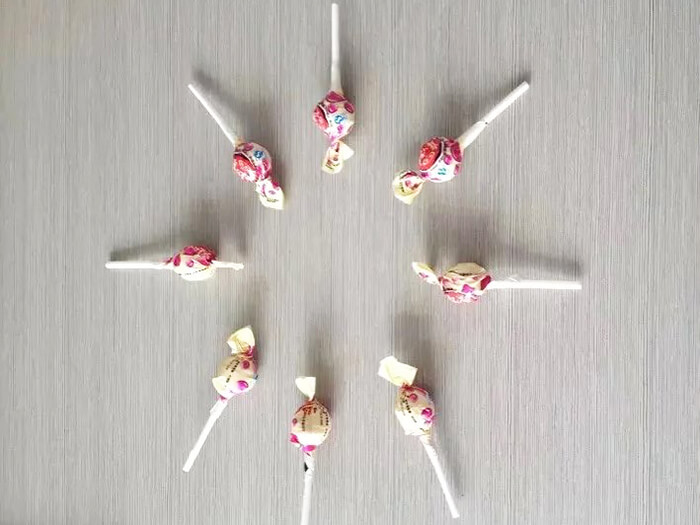

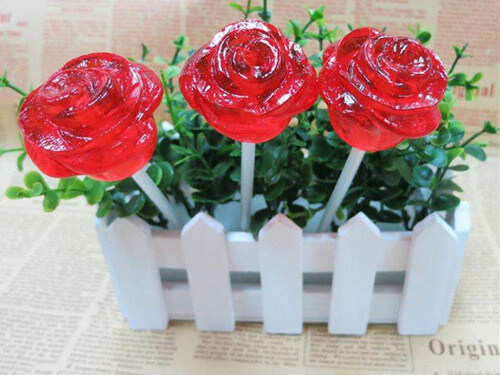

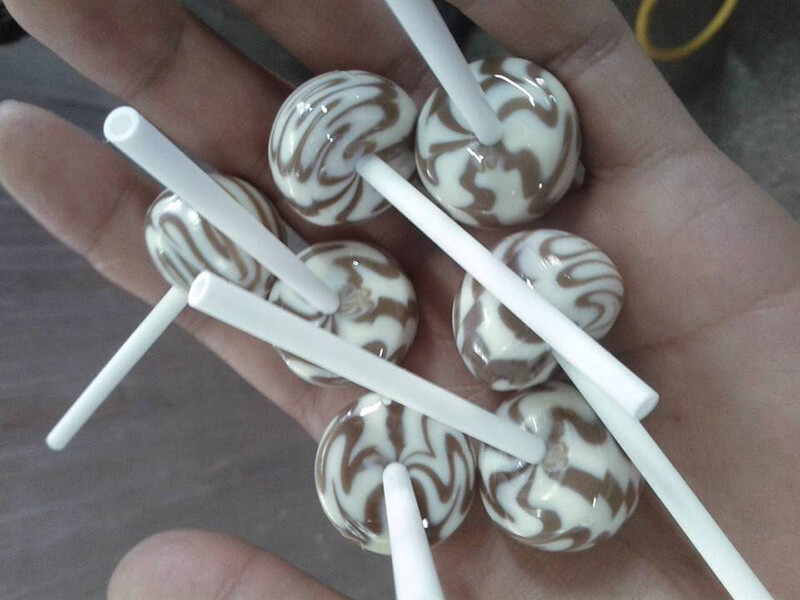

Lollipop Samples

Main Technical Parameters

Model GDL150 GDL300 GDL450 GDL600
Production capacity 120kg/h 240kg/h 350kg/h 480kg/h
Max. of the product Max 16g Max 16g Max 16g Max 16g
Speed of stroke 25n/min 25n/min 25n/min 25n/min
Steam consumption 250kg/h 300kg/h 400kg/h 450kg/h
Steam pressure 0.2~0.6Mpa 0.2~0.6Mpa 0.2~0.6Mpa 0.6~0.8Mpa
Electric power needed 18kw/380V 18kw/380V 20kw/380V 25kw/380V
Compressed air consumption 0.    2mP3P/min 0.    25mP3P/min 0.    3mP3P/min 0.5mP3P/min
Compressed air pressure 0.4-0.6Mpa 0.4-0.6 Mpa 0.4-0.6Mpa 0.8~1.0Mpa
Conditions needed for  the cooling system:
1.Room temperature(℃) 20~25 20~25 20~25 20~25
2.Humidity (%) 55 55 55 55
3.Length of plant 11M 13M 14M 17M

The Machinery to Produce Lollipop

Candy Cooker

Syrup Preparation Section

  • Full Stainless Steel 304 whole compact set for the dissolving system(sugar dissolving cooker, gear pump, and storage tank are installed in a compact SS frame body), it saves the space, and is easy for maintenance.
  • Improved connection makes no leakage of the steam.
  • Stainless steel syrup pump replaces the old steel pump, more durable and hygiene.
Read More
Micro-Film Cooking Section

Micro-Film Cooking Section (Improved)

  • The PLC controller is separated out of the cooker to prevent the hot wet steam doing the harmful effects on the PLC and electronic parts, to maximally prolong the use-life of the cell parts.
  • It also can totally eliminate the unstable working of PLC and touch screen under a wet and hot condition of the old –type micro-film cooker.
Read More

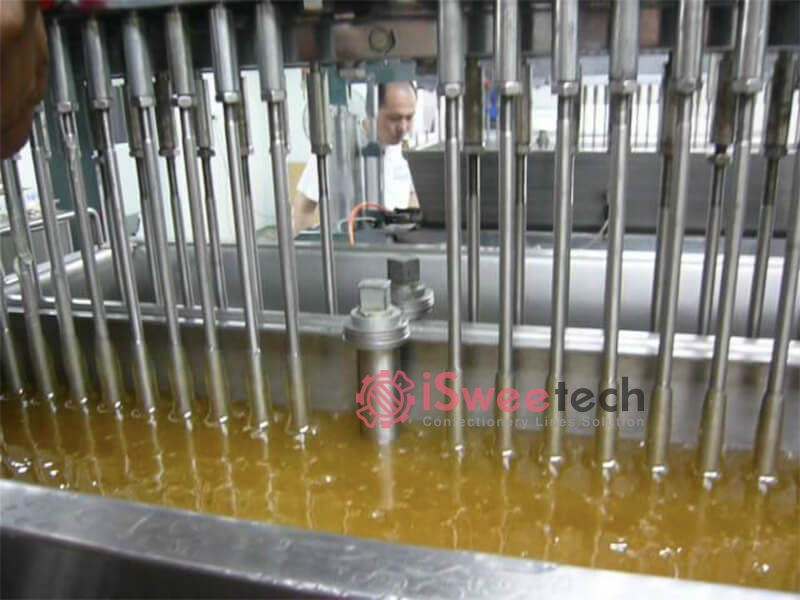

GDL-Depositing And Cooling Section

Depositing And Cooling Section

  • Underband Servo-drive designed depositer: All drive components are mounted on the machine(underband) rather than on the depositing head;
  • The unique design is in compact and simple, which can reduce the movement inertia and weight of the depositing head, thus it can achieve higher the depositor’s running speed to maximize output capacity;
Read More
FCA Dosing and Mixing Unit

Dosing And Mixing Unit

Accurate metering system with pluger type pump driven by a common variable speed unital for the injection of the liquid additives(flavor, color and acid), the additives are thoroughtly mixed into the cooked mass by jacket stainless inline mixer; in FCA system, it ensures that the end product will always be of a consistent and high quality. Compact design, and fully qutomatic operation.

Read More
GDL- Automatic Stick Insertion Device 2

Automatic Stick Insertion Device

  • Pneumatic type
  • Sticking accurate
  • Easy maintenance
  • 99.9% of accurate stick-insertion
Read More
PLC Control System

PLC Control System

  • Full PLC control and touch screen provide full process operation
  • Recipe management and alarm handling
  • Accurate control of the product dimensions and weight
Read More

GDL – Molds

  • Aluminum with teflon coating /silicon made
  • Mould size:320x74mm
  • 2D or 3D moulds are available
  • Customized shape and weight, designed as per the customer’s requirement
Read More
Chocolate Holding Tank And Pump, Pipes

Fruit Jam Holding Tank And Pump, Pipes

  • Tank Volume: 150Ltr
  • SS Transfer pump
  • Electric Heating and temperature control
  • Motor: China
  • Material: SUS-304 made
Read More
