Project Description
Description

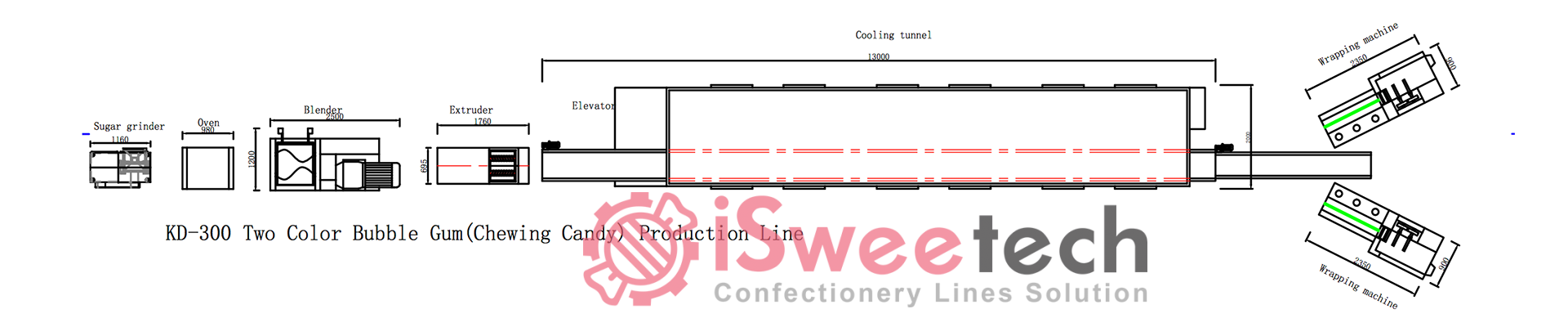

The processing line is consists of mixer, extruder, cooling tunnel, and automatic cutting & fold-wrapping machine, it is an ideal solution for the requirements to produce two color bubble gum in various kinds of shapes, such as square, ellipsi etc. with pleasant shape and reliable performance, the plant is easy to be operated and maintained.
Main Technical Parameters
| Model | KD300 |
| Production capacity | 200~300kg/h |
| Rated output speed | 1000pcs/min |
| Weight of each candy | Shell: 7g(max.) |
| Steam consumption | 400kg/h |
| Steam pressure | 0.2~0.6Mpa |
| Electric power needed | 34kw/380V |
| Compressed air consumption | 0.25 mP3P/min |
| Compressed air pressure | 0.4~0.6 Mpa |
| Conditions needed for the cooling system: | |
| 1. Room temperature | 20~25℃ |
| 2. Humidity | 55% |
| Length of the whole line | 16m |
| Gross weight | Approx.8000kgs |

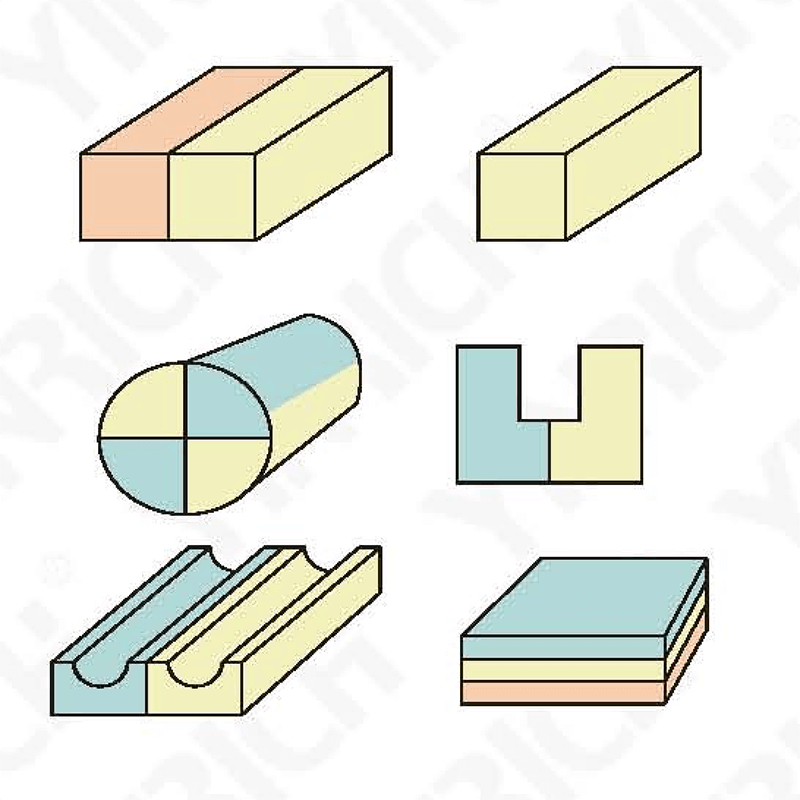

Candy Types

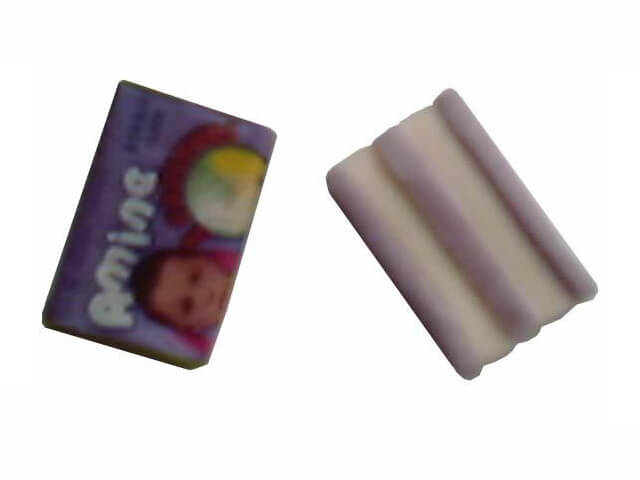

Candy Samples
The Machinery to Produce Candy
Sugar Powder Machine
This machine is suitable for material crushing by the industries of Pharmaceutics, chemical, and foodstuff etc.
This machine uses the relative movement between the active fluted disc and the fixed to impact, grind and crush the targe materials. The size of granules can be achieved by changing of the screen.

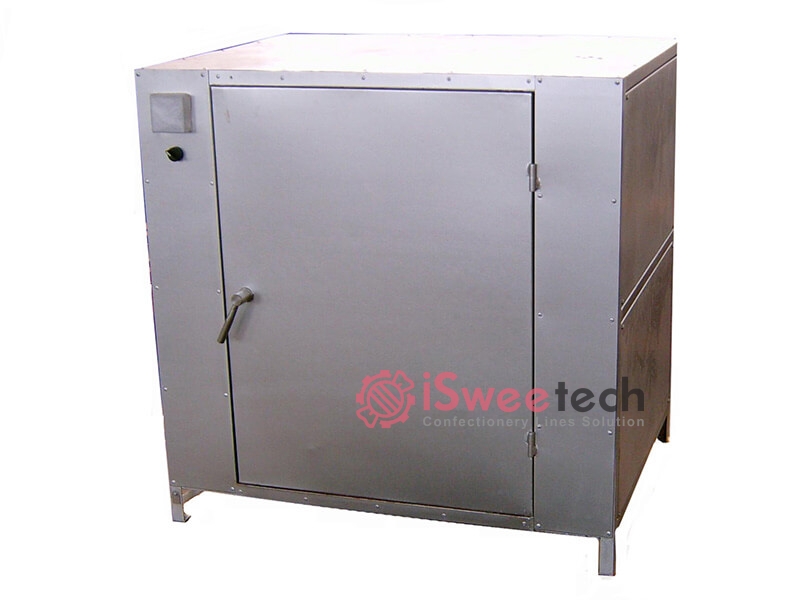

Gum Base Oven
Gum Mixer
- Food standard tainless Steel 304 made
- Stirring speed:
n1= 42 r/min
n2= 26 r/min
Gum Extruder
- Food standard stainless steel 304 made
- Screw type
- Nos of screw: 2
- Drive power:3kw
KD300 Cooling Tunnel
- Food standard tainless Steel 304 made
- Volume:50Liter
- Double-jacket
- Stirrer:0.75kw
QNB500 Cut & Double-twist Packaging Machine
- Automatic PLC control.
- Automatic lubrication with shower distribution.
- The lubricant is kept in a removable tray.
- The size changing and operation start-up is very rapidly.
- Replacement of supply paper-wheel is easy.
- Can be combined with the production line.
- High precision, strong sealing performance, high stability.
KZB800 Cut & Pillow Type Wrapping Machine
- Automatic PLC control.
- Can be combined with the production line.
- It improves efficiency, hygienic.
- High precision, strong sealing performance, high stability.
QZB500 Cut & Fold Wrapping Machine
- Automatic PLC control.
- Automatic lubrication with shower distribution.
- The lutricant is kept in a removable tray.
- The size changing and operation start-up is very rapidly.
- Replacement of supply paper-wheel is easy.
- Can be combined with the production line.
- It improves efficiency, hygienic.
